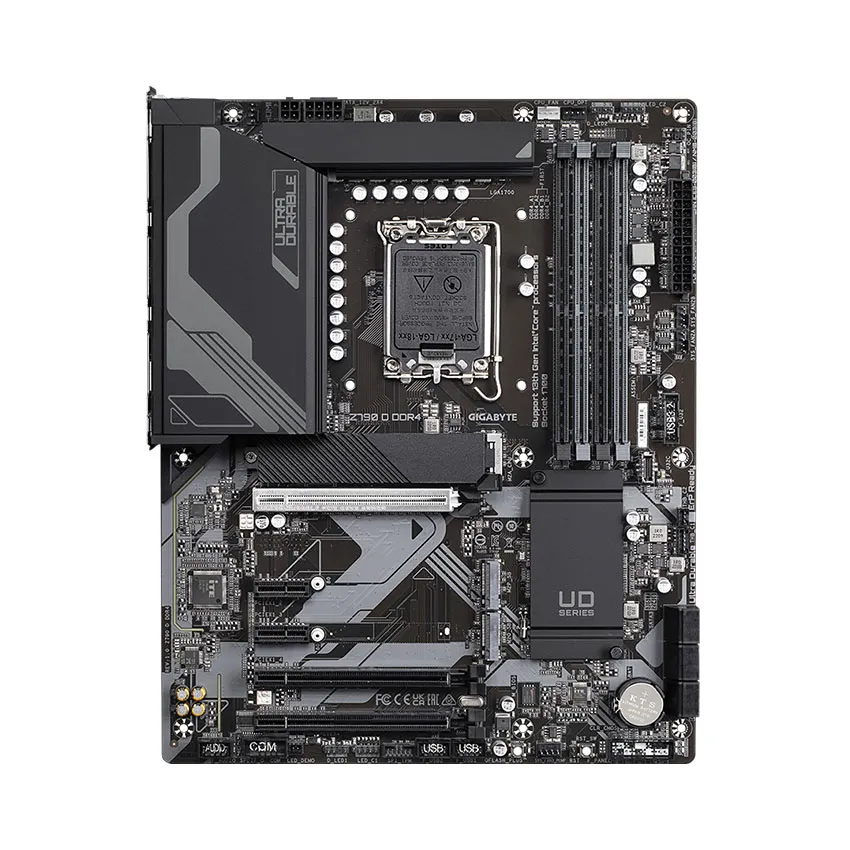

Mainboard Gigabyte Z790 D DDR4

Name: Mainboard Gigabyte Z790 D DDR4
SKU: SKU-18721
Price: 5250000.00 VND
Availability: InStock

SKU: SKU-18721

Danh mục: Bo mạch chủ

5,250,000₫

Tình trạng: Còn hàng

Bảo hành:

Mô tả ngắn:

Thông số sản phẩm

Hỗ trợ CPU Intel thế hệ thứ 12 và 13

Socket: LGA1700 , Chipset: Z790

Hỗ trợ RAM: 4 khe DDR4, tối đa 128Gb

Chuẩn mainboard: ATX

Thông số kỹ thuật

Sản phẩm	Bo mạch chủ
Tên Hãng	Gigabyte
Model	Z790 D DDR4
CPU hỗ trợ	Intel
Chipset	Z790
RAM hỗ trợ	Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
RAM hỗ trợ	4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Khe cắm mở rộng	CPU:
	1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
	Chipset:
	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
	1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
	2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Ổ cứng hỗ trợ	CPU:
	1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
	6 x SATA 6Gb/s connectors
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x 4-pin ATX 12V power connector
	1 x CPU fan header
	1 x water cooling CPU fan header
	3 x system fan headers
	1 x system fan/water cooling pump header
	2 x addressable LED strip headers
	2 x RGB LED strip headers
	3 x M.2 Socket 3 connectors
	6 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x S/PDIF Out header
	1 x USB Type-C® header, with USB 3.2 Gen 1 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x serial port header
	2 x Thunderbolt™ add-in card connectors
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	1 x reset button
	1 x Q-Flash Plus button
	1 x reset jumper
	1 x Clear CMOS jumper

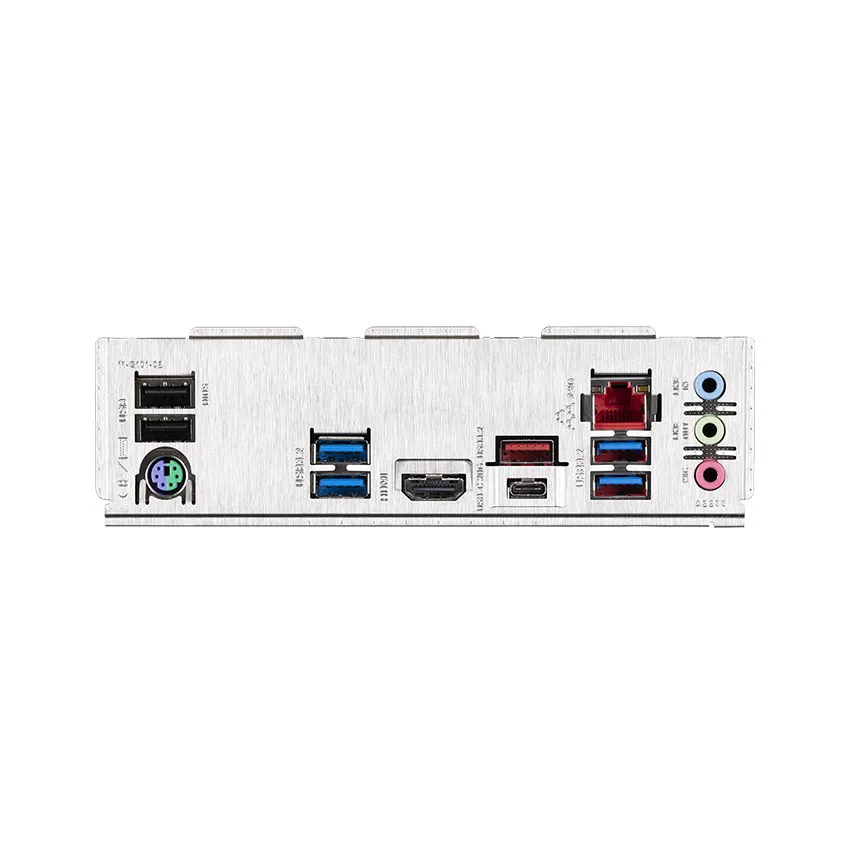

Cổng kết nối (Back Panel)	1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
	1 x USB 3.2 Gen 2 Type-A port (red)
	4 x USB 3.2 Gen 1 ports
	2 x USB 2.0/1.1 ports
	1 x HDMI 2.0 port
	1 x RJ-45 port
	3 x audio jacks
LAN / Wireless	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Kích cỡ	ATX Form Factor; 30.5cm x 24.4cm
