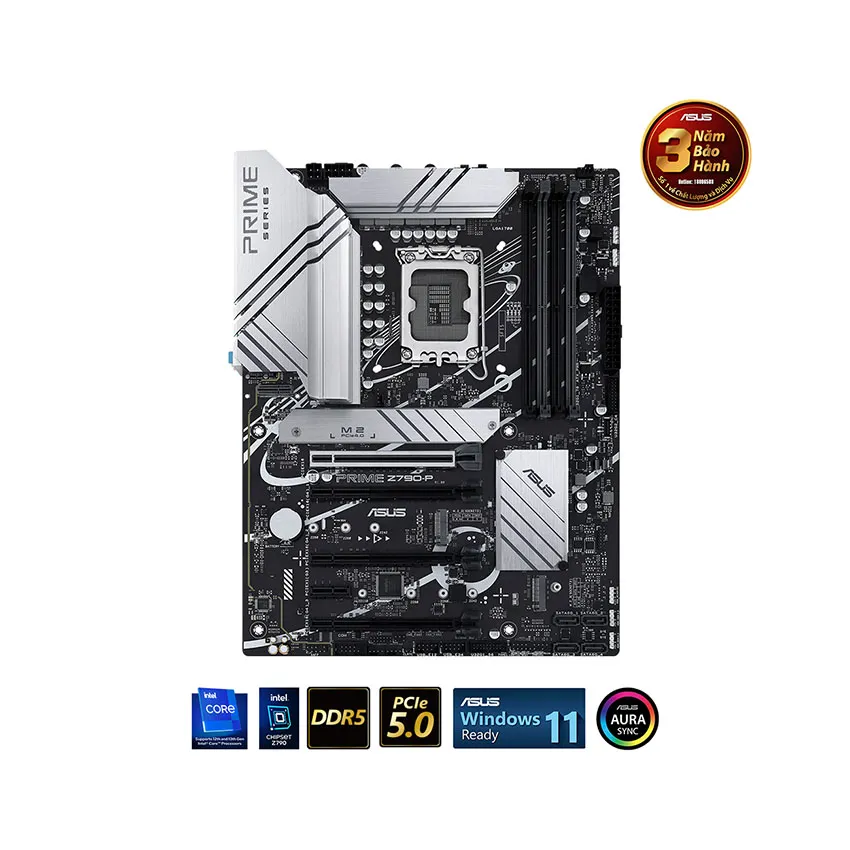

Mainboard ASUS PRIME Z790-P-CSM DDR5

Name: Mainboard ASUS PRIME Z790-P-CSM DDR5
SKU: SKU-70709
Price: 5250000.00 VND
Availability: InStock

SKU: SKU-70709

Danh mục: Bo mạch chủ

5,250,000₫

Tình trạng: Còn hàng

Bảo hành:

Mô tả ngắn:

Thông số sản phẩm

Hỗ trợ CPU Intel thế hệ thứ 12 và 13

Socket: LGA1700 , Chipset: Z790

Hỗ trợ RAM: 4 khe DDR5, tối đa 128Gb

Chuẩn mainboard: ATX

Thông số kỹ thuật

Sản phẩm	Bo mạch chủ
Tên Hãng	Asus
Model	PRIME Z790-P CSM
CPU hỗ trợ	Intel
Chipset	Intel Z790 Chipset
RAM hỗ trợ	4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)
RAM hỗ trợ	5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory

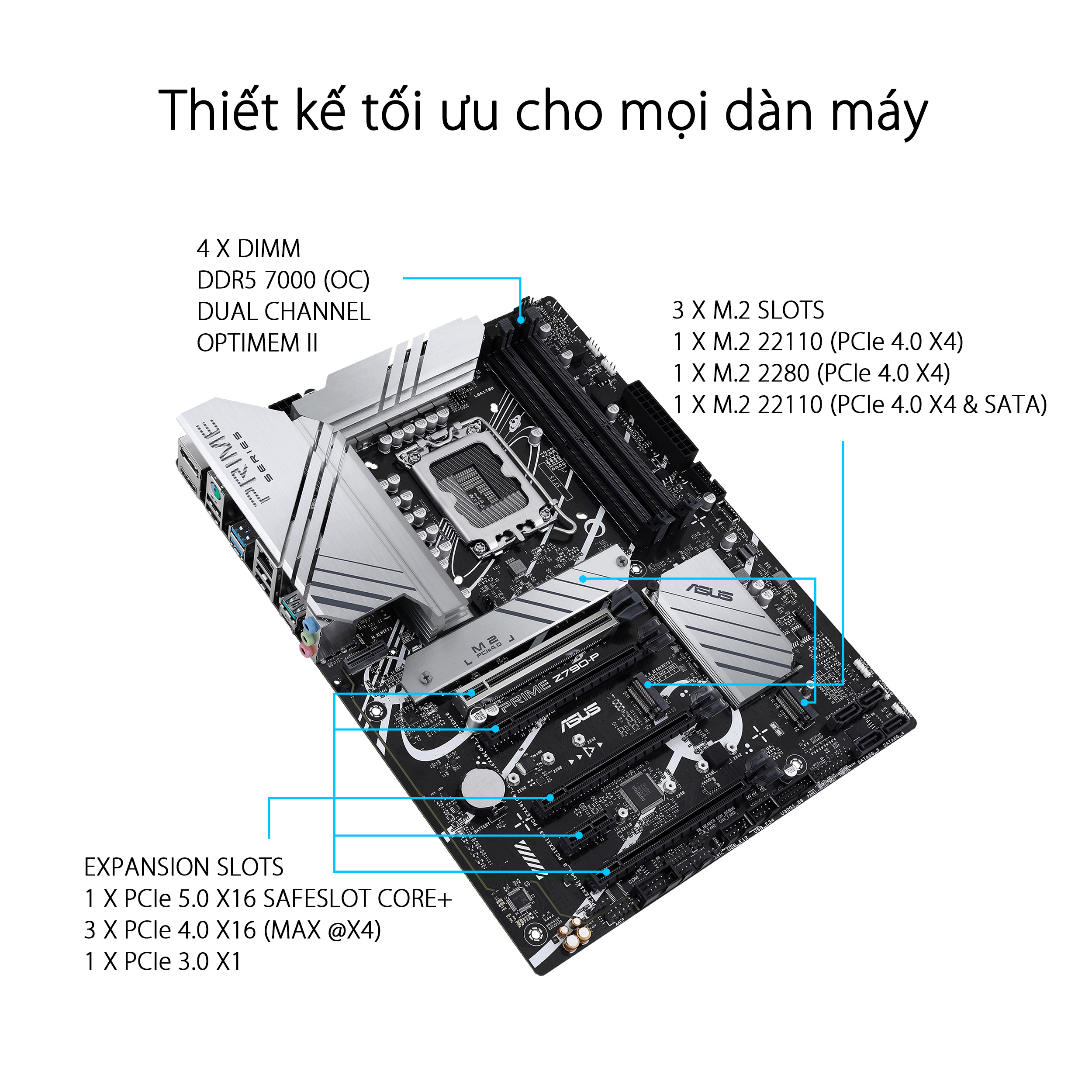

Khe cắm mở rộng	Intel® 13th & 12th Gen Processors*
	1 x PCIe 5.0 x16 slot
	Intel® Z790 Chipset
	3 x PCIe 4.0 x16 slots (support x4 mode)
	1 x PCIe 3.0 x1 slot
Ổ cứng hỗ trợ	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
	Intel® 13th & 12th Gen Processors
	M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
	Intel® Z790 Chipset
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
	4 x SATA 6Gb/s ports

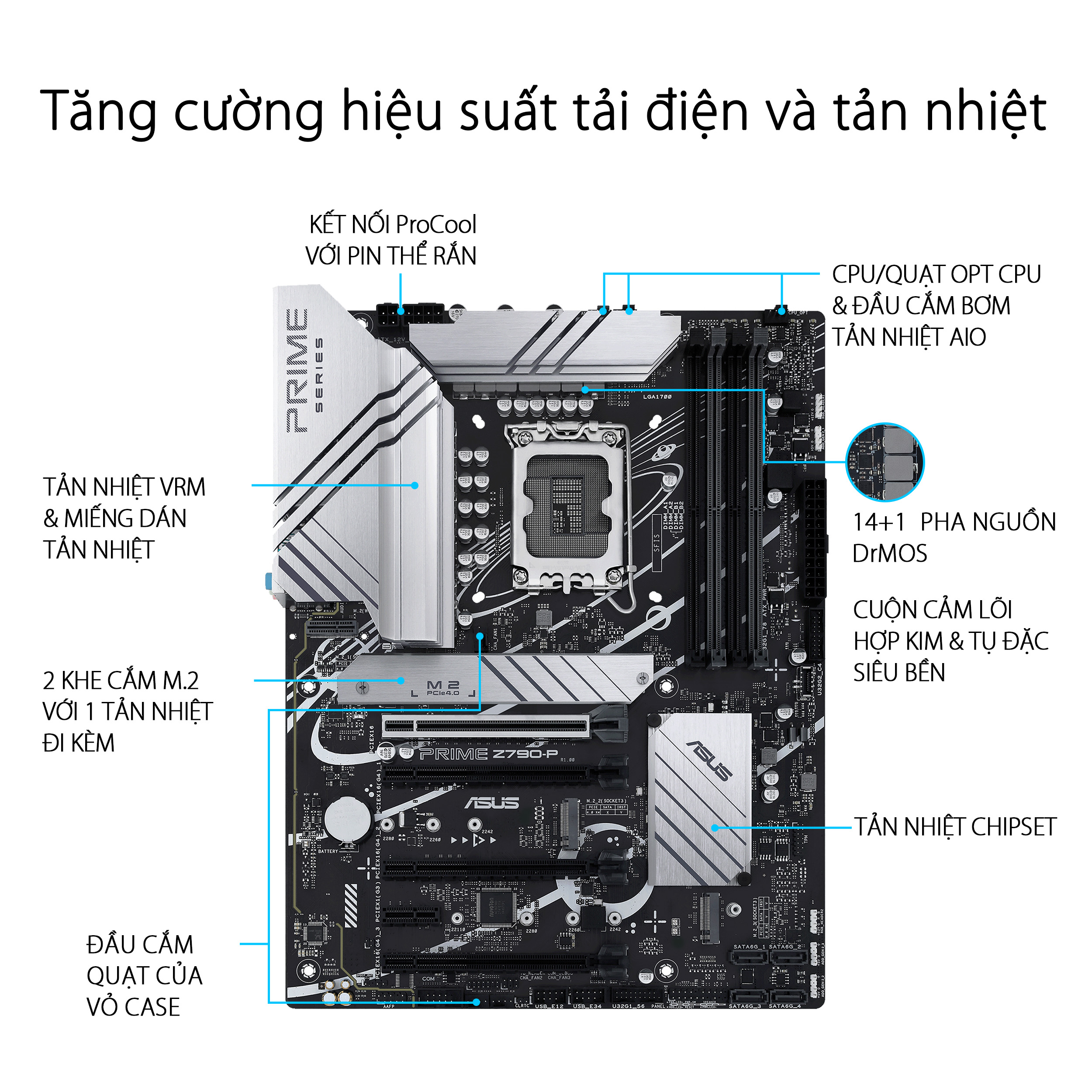

Cổng kết nối (Internal	Fan and Cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	3 x 4-pin Chassis Fan headers
	Power related
	1 x 24-pin Main Power connector
	1 x 8-pin +12V Power connector
	1 x 4-pin +12V Power connector
	Storage related
	3 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
	2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports

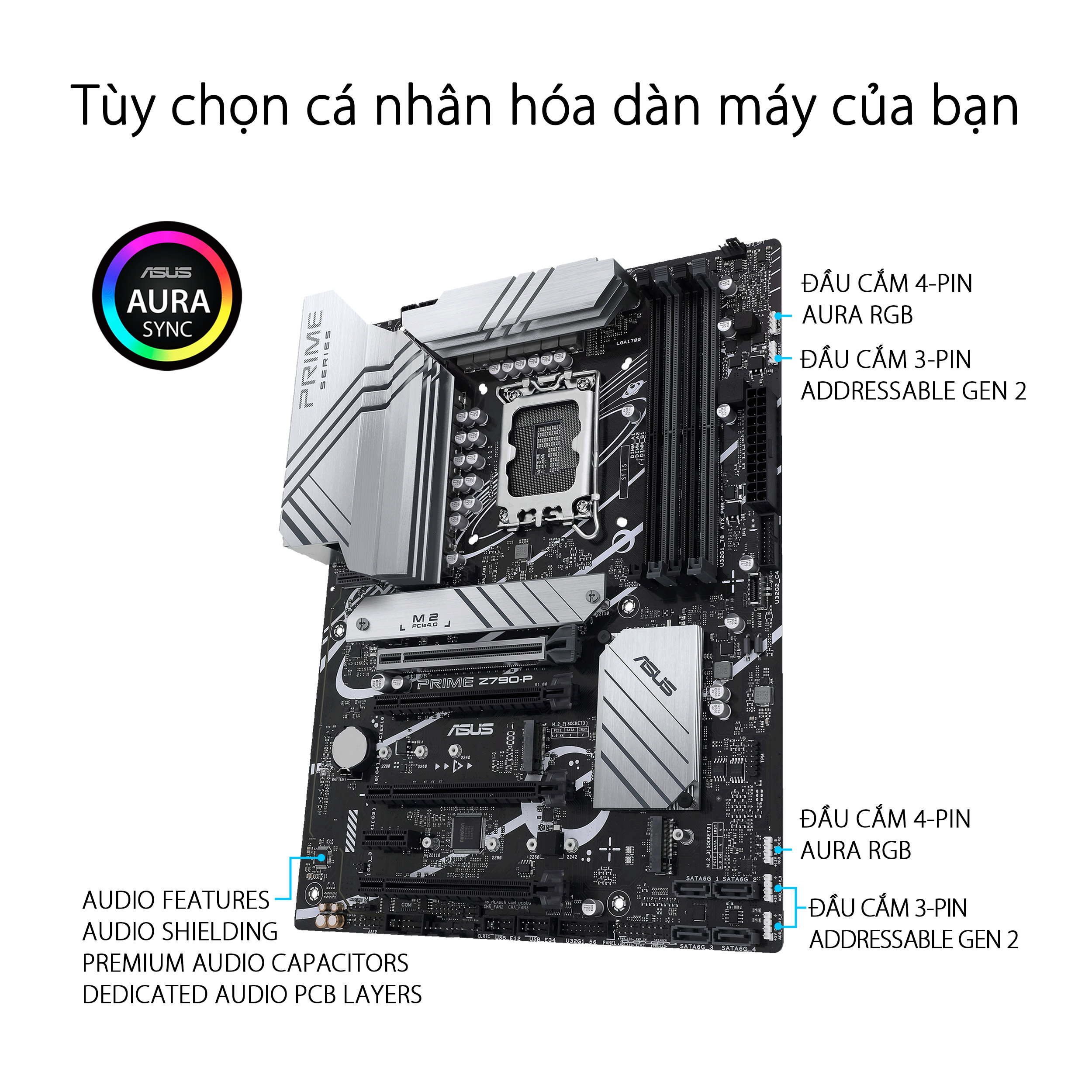

	Miscellaneous
	3 x Addressable Gen 2 headers
	2 x Aura RGB headers
	1 x Clear CMOS header
	1 x COM Port header
	1 x Front Panel Audio header (AAFP)
	1 x S/PDIF Out header
	1 x SPI TPM header (14-1pin)
	1 x 20-5pin System Panel header
	1 x Thunderbolt™ (USB4®) Header

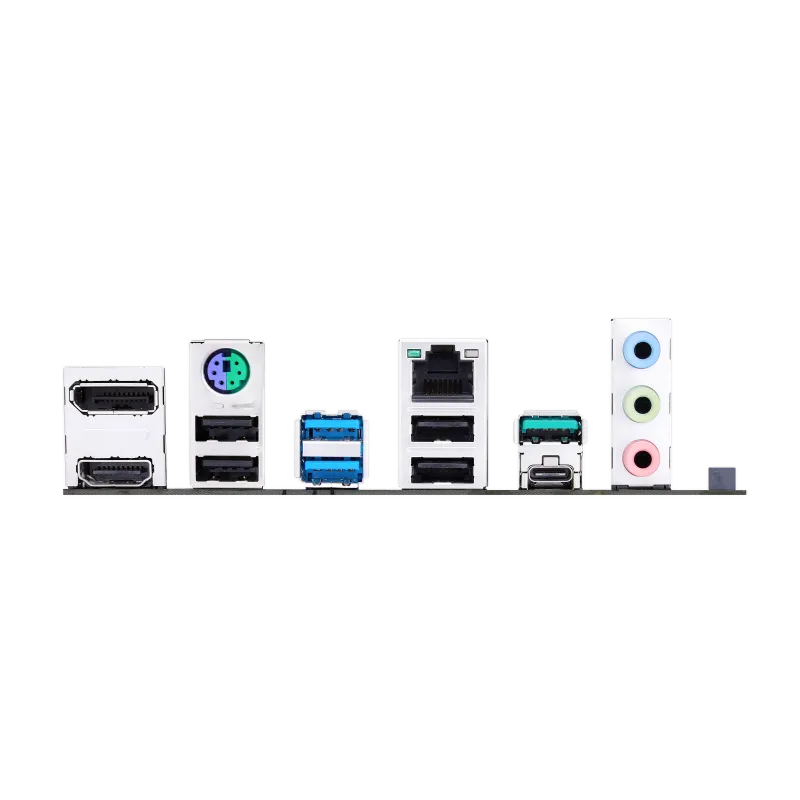

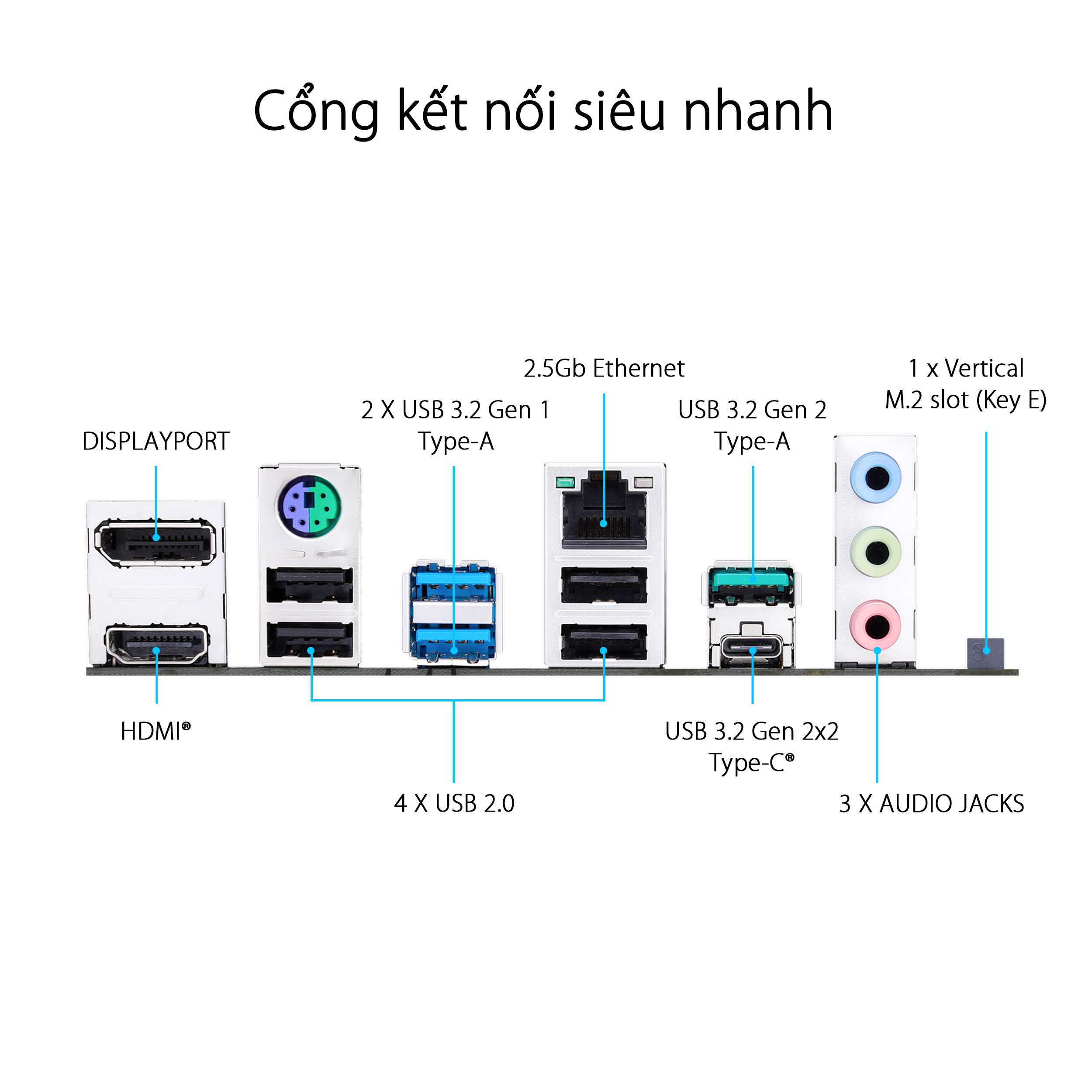

Cổng kết nối (Back Panel)	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
	1 x USB 3.2 Gen 2 port (1 x Type-A)
	2 x USB 3.2 Gen 1 ports (2 x Type-A)
	4 x USB 2.0 ports (4 x Type-A)
	1 x DisplayPort
	1 x HDMI® port
	1 x Wi-Fi Module
	1 x Realtek 2.5Gb Ethernet port
	3 x Audio jacks
	1 x PS/2 Keyboard/Mouse combo port
LAN / Wireless	Vertical M.2 slot only (Key E, CNVi & PCIe)*
	*Wi-Fi module is sold separately.
	1 x Realtek 2.5Gb Ethernet
Kích cỡ	ATX Form Factor
Kích cỡ	12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
