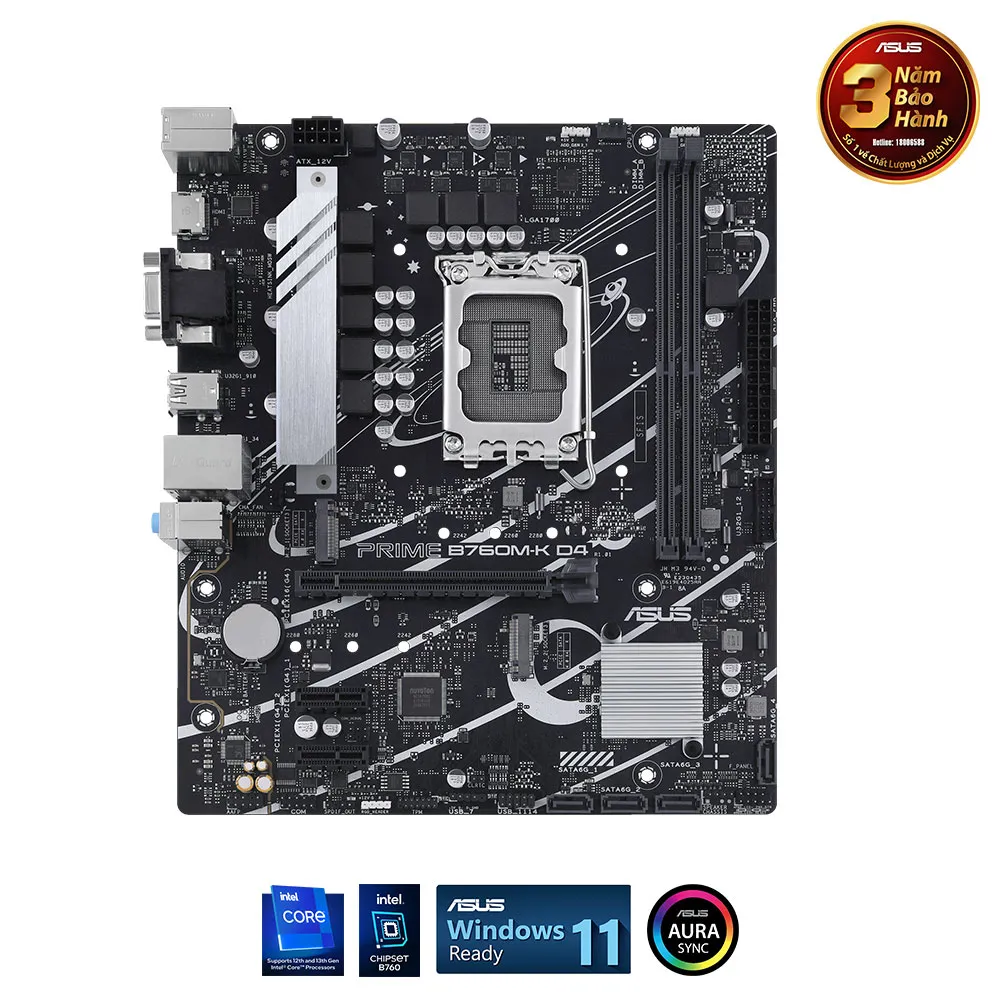

Mainboard ASUS PRIME B760M-K D4

Name: Mainboard ASUS PRIME B760M-K D4
SKU: SKU-53318
Price: 2550000.00 VND
Availability: InStock

SKU: SKU-53318

Danh mục: Bo mạch chủ

2,550,000₫

Tình trạng: Còn hàng

Bảo hành:

Mô tả ngắn:

Thông số sản phẩm

Chipset: Intel B760

Socket: Intel LGA 1700

Kích thước: M-ATX

Số khe RAM: 2 khe (Tối đa 64GB)

Thông số kỹ thuật

Sản phẩm	Bo mạch chủ
Tên Hãng	ASUS
Model	PRIME B760M-K D4
CPU hỗ trợ	Hỗ trợ cho thế hệ thứ 12 and 13 Intel® Core Socket LGA1700
Chipset	B760

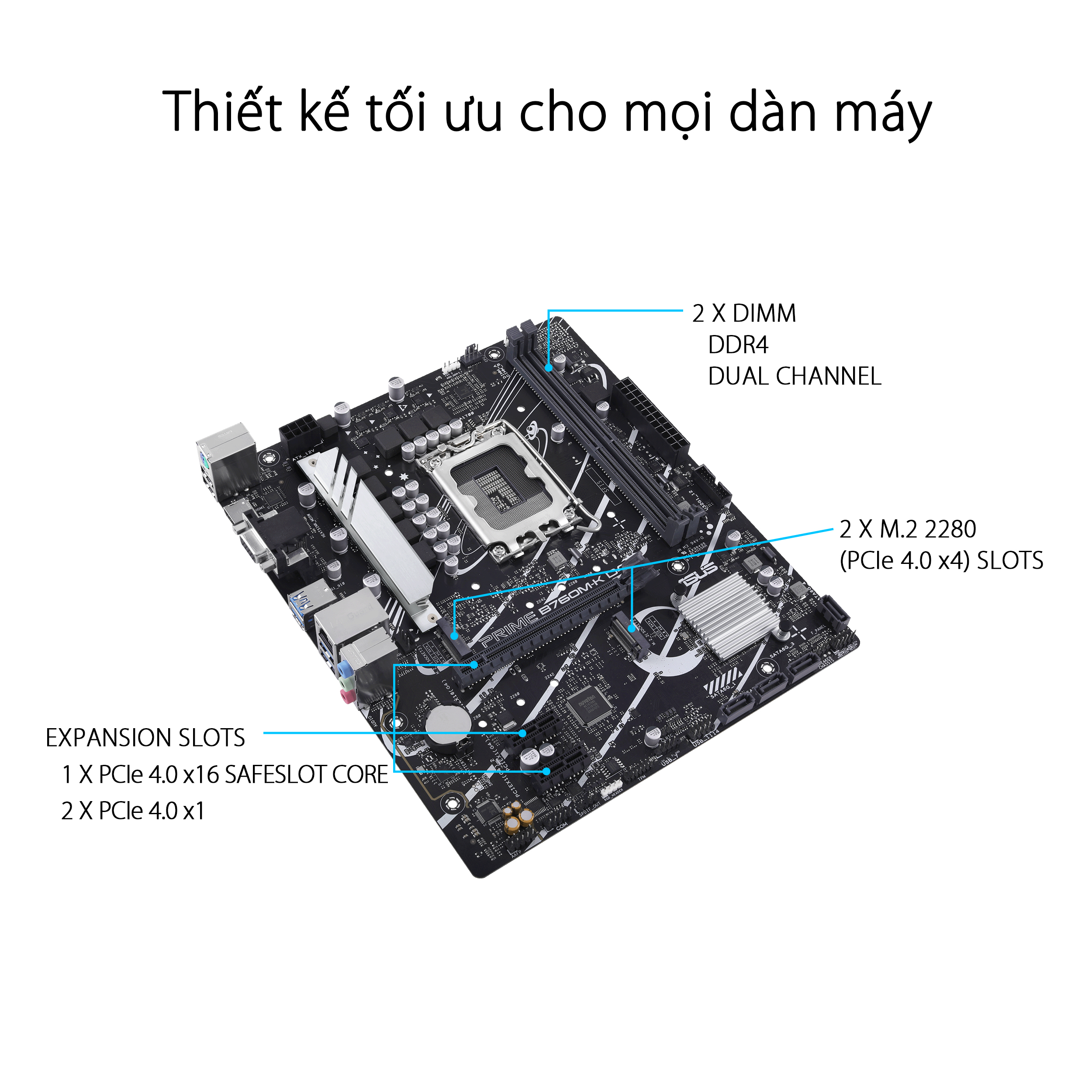

RAM hỗ trợ	2 x DIMM, Max. 64GB, DDR4 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
Khe cắm mở rộng	Intel® 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel® B760 Chipset 2 x PCIe 4.0 x1 slots
Ổ cứng hỗ trợ	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

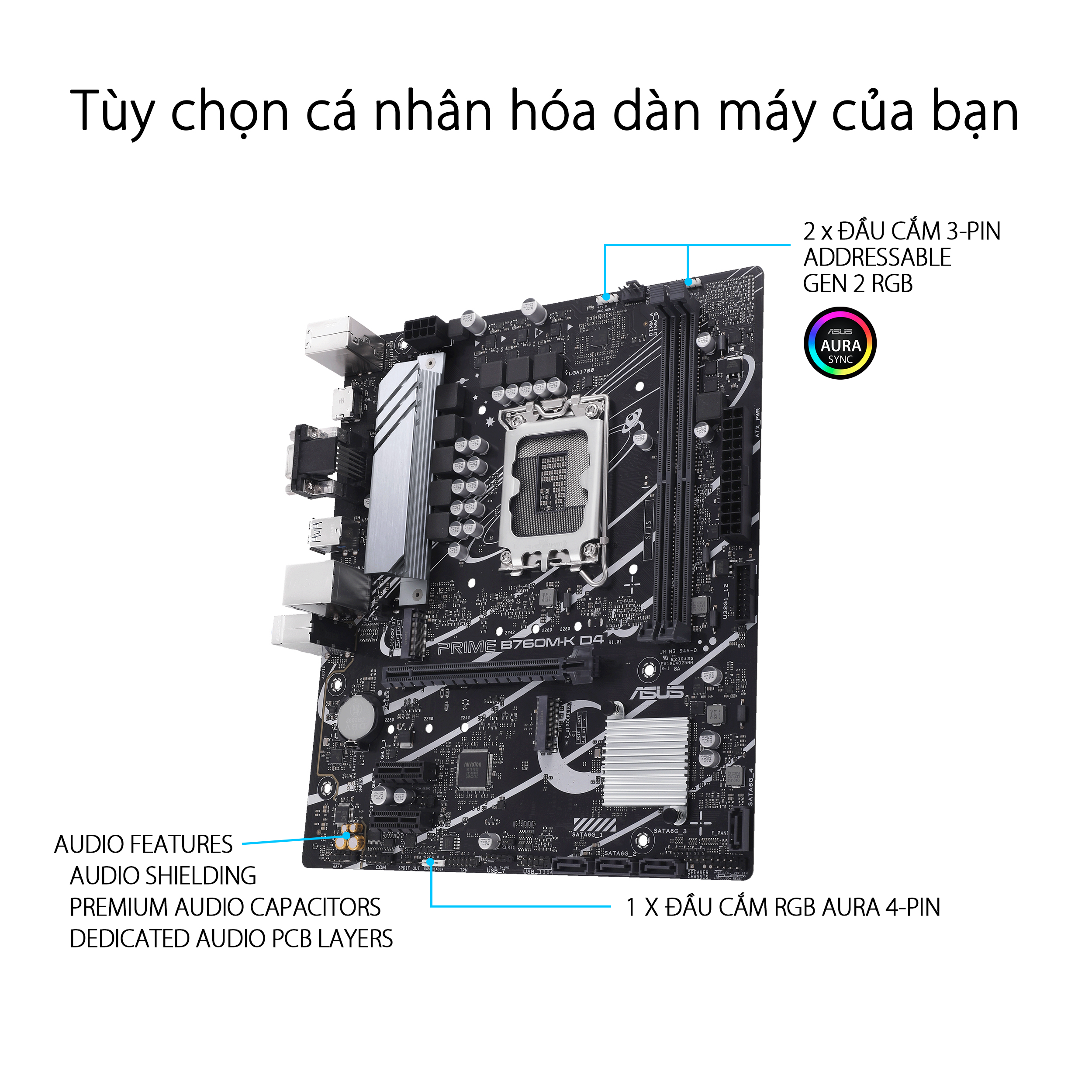

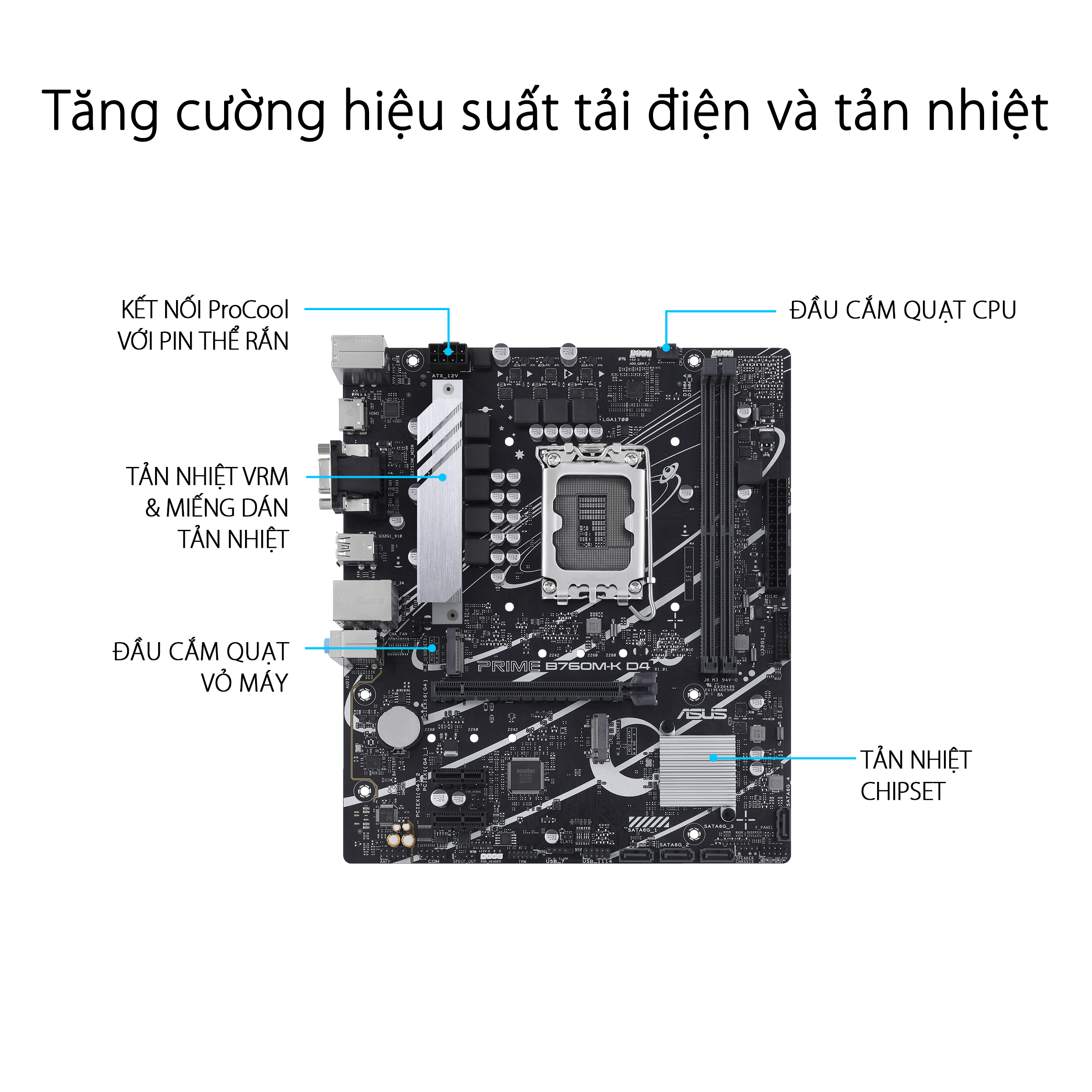

Cổng kết nối (Internal)	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header

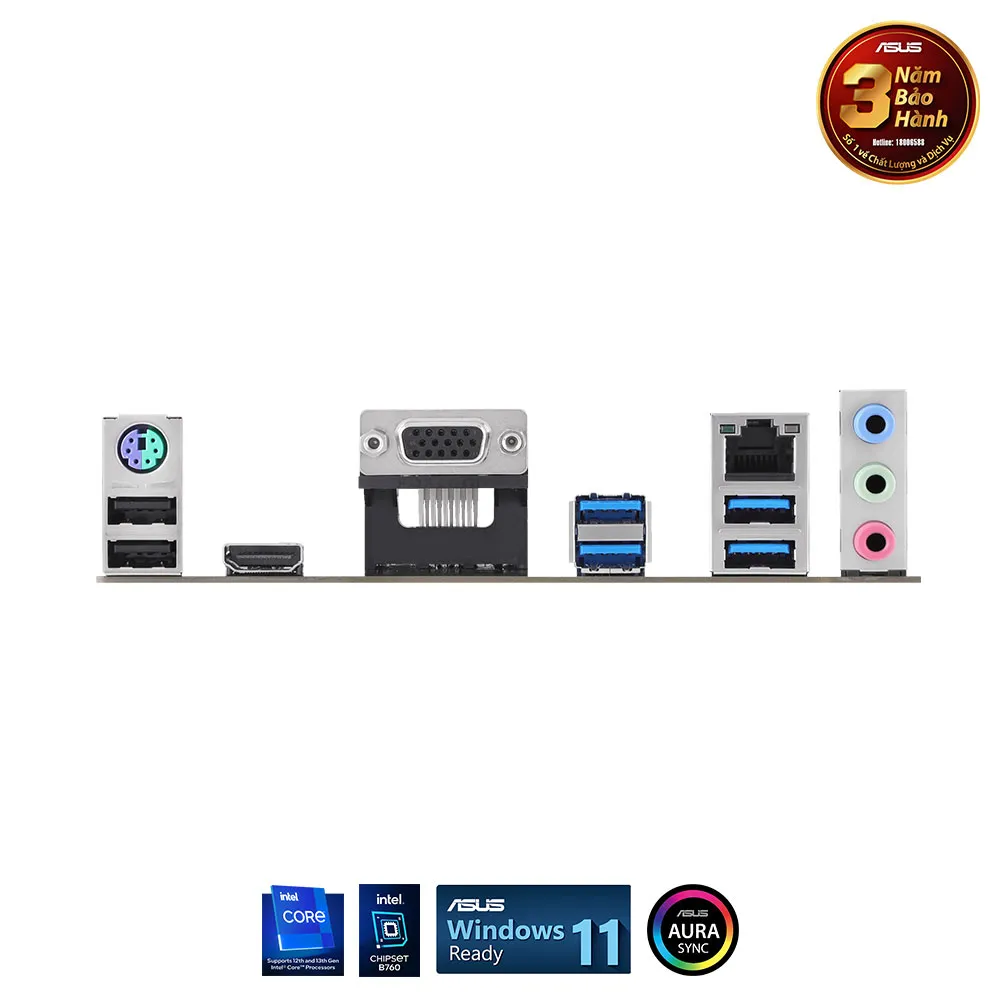

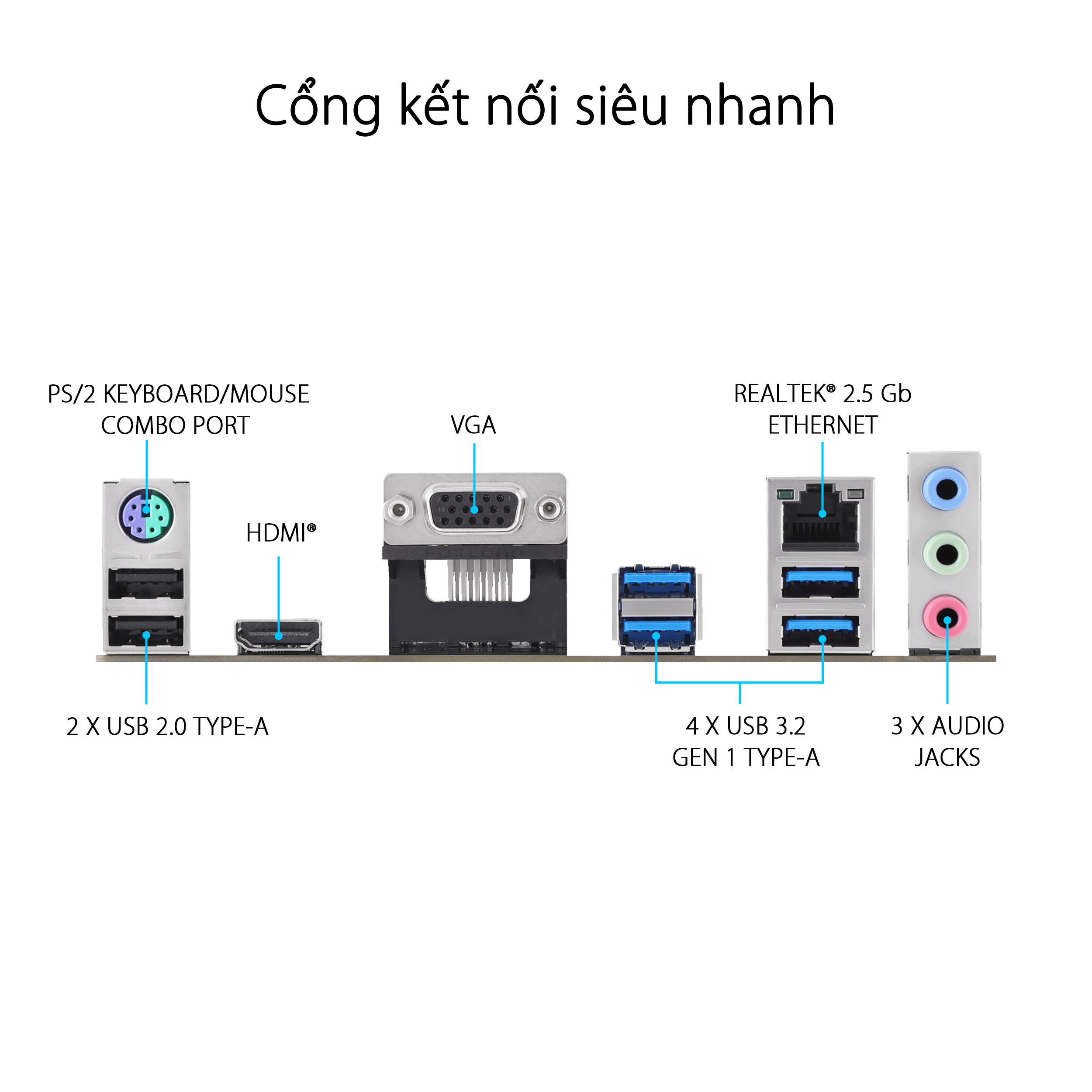

Cổng kết nối (Back Panel)	4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
LAN / Wireless	1 x Realtek 2.5Gb Ethernet

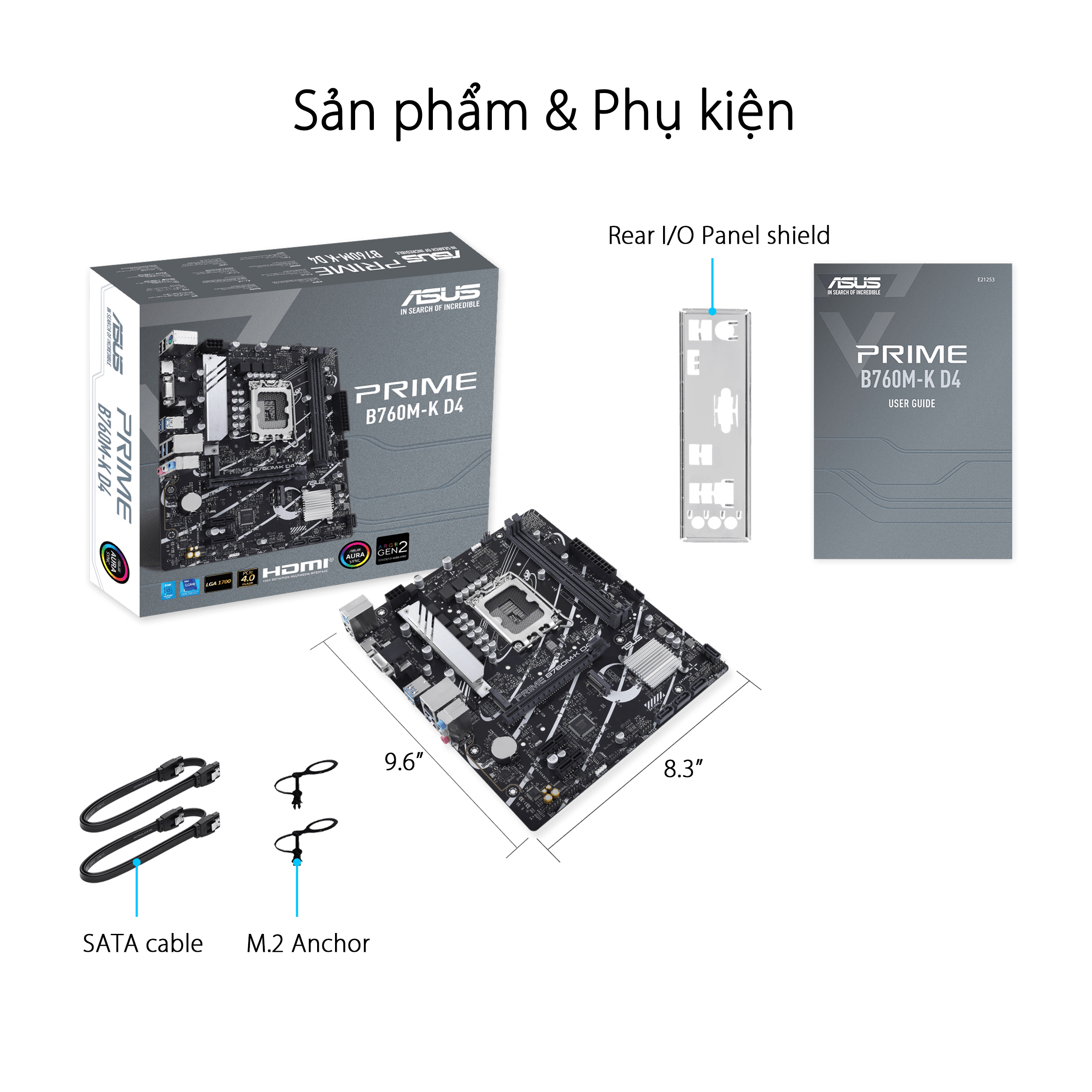

Kích cỡ	mATX Form Factor 24.4 cm x 21.1 cm
